OPERATING INSTRUCTIONS

EXPLANATION OF OXYGEN PURITY INDICATOREXPLANATION OF OXYGEN PURITY INDICATOR

EXPLANATION OF OXYGEN PURITY INDICATOR

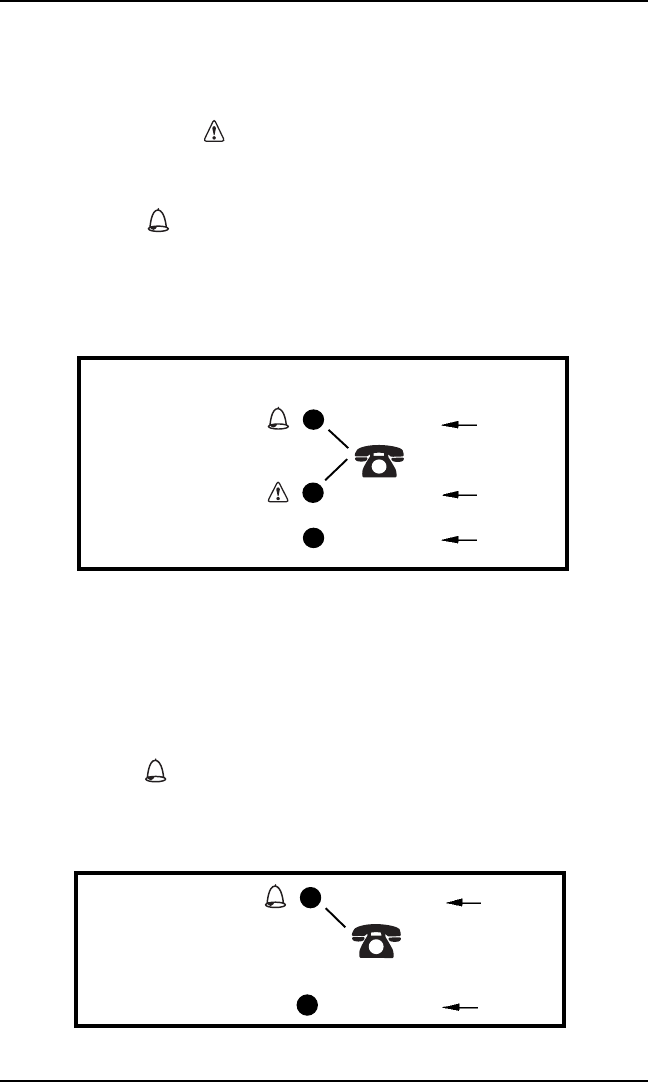

LIGHTS (FIGURE 8):LIGHTS (FIGURE 8):

LIGHTS (FIGURE 8):

GREEN LIGHT ( ) - Normal Operation

YELLOW LIGHT ( ) - Call Supplier IMMEDIATELY. You may

continue to use the concentrator unless instructed otherwise by your

supplier. Be certain that BACKUP OXYGEN is nearby.

RED LIGHT ( )- Total unit shutdown. Switch IMMEDIATELY

to BACKUP OXYGEN supply. Call Supplier IMMEDIATELY.

GREEN LIGHT - with YELLOW LIGHT FLASHING - Call

Supplier IMMEDIATELY. Oxygen sensor malfunctioning; you may

continue to use the concentrator.

INDICATORS- IF YOUR UNIT DOES NOT

FEATURE THE O

SENSOR

LX MODELS INDICATOR LIGHT EXPLANATION

(FIGURE 9):

RED LIGHT ( )- Total Unit Shut-Down. Switch IMMEDIATELY

to a BACK-UP OXYGEN supply. Call Supplier IMMEDIATELY.

GREEN LIGHT (I/O)- On/Off. System okay.

Call Supplier

Normal

RED

GREEN

Auto Shut - Down

Use Backup

I/O

FIGURE 9 - DISPLAY CONTROL PANEL

FIGURE 8 - O

DISPLAY CONTROL PANEL

Call Supplier

Normal

Below Normal

OXYGEN PURITY

RED

YELLOW

GREEN

Auto Shut - Down

Use Backup
